Colorlight l Series LED Display Controller 5A.75E 5A-75B LED Receiving Card

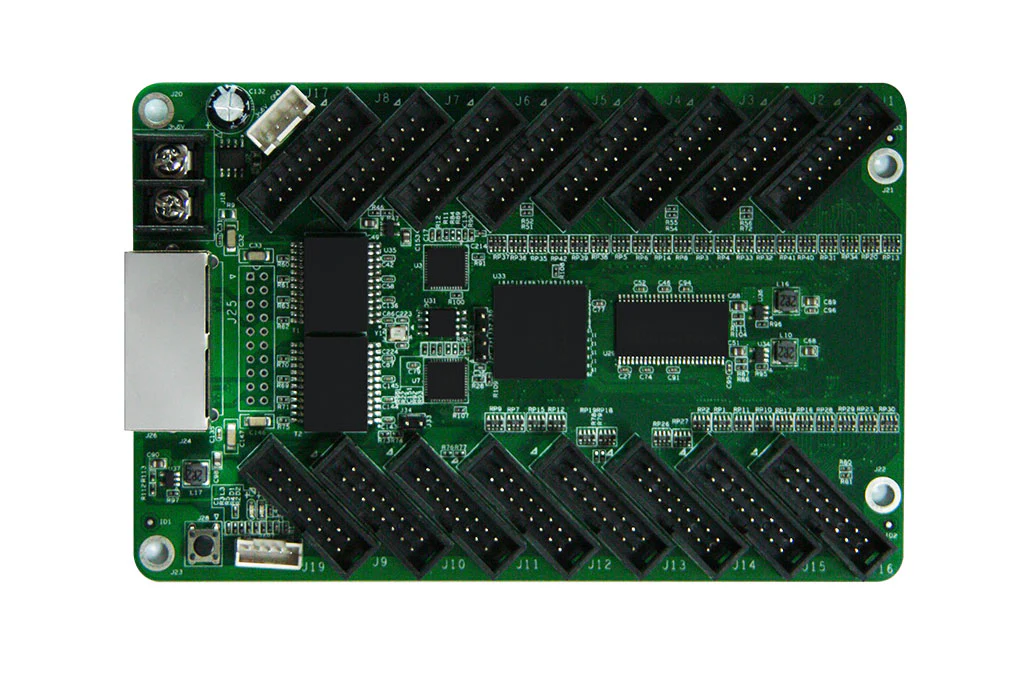

5A-75E LED Receiving Card

The 5A-75E LED Receiving Card is a cost-effective, highly integrated LED receiver card launched by Colorlight. It adopts a standard HUB75 interface, which simplifies design and enhances stability. This card is suitable for most display applications that do not require external adapter boards, reducing costs and minimizing potential failure points.

• Highly integrated design with HUB75 adapter board built-in.
• Fewer cable connections, reducing failure points and installation difficulty.
• Supports high refresh rate, high grayscale, and high brightness displays.
• Improved display effects with better image consistency and color uniformity.
• Supports all mainstream driver ICs including conventional and PWM chips.
• Supports point-by-point brightness and chromaticity correction.
• Supports 2~64 scan types and static display.
• Supports shaped and creative LED screens including spherical and curved designs.
• Single card supports 16 groups of RGB data signal outputs.
• Supports large-area display control.
• Wide voltage operating range: DC 3.3V ~ 6V.
• Fully compatible with all Colorlight sending cards.

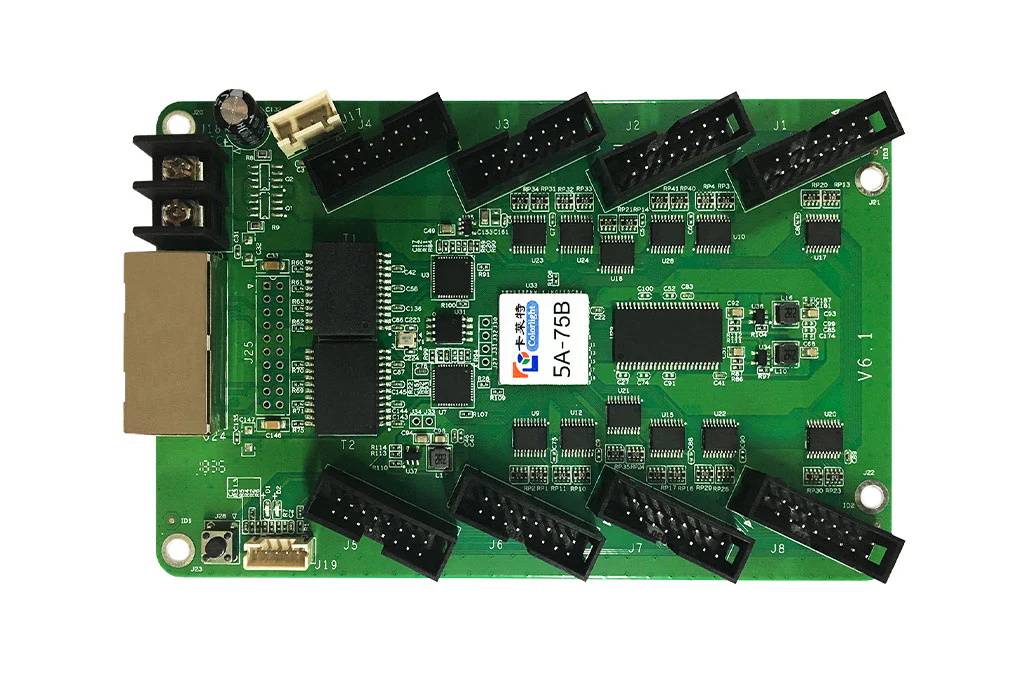

5A-75B LED Receiving Card

The 5A-75B LED Receiving Card is a reliable, high-performance product developed by Colorlight, equipped with a standard HUB75 interface and optimized for compatibility with conventional and PWM driver chips. It offers stable signal output and is ideal for small to medium-sized displays where reliability and integration are crucial.

• Built-in HUB75 adapter board for streamlined connections.
• Supports 12 sets of RGB signal outputs.
• Wide compatibility with static to 1/64 scan modes.
• Supports high refresh, high grayscale, and high brightness.
• Compatible with all mainstream driver ICs.
• Supports brightness and color correction point-by-point.
• DC 3.3V ~ 6V ultra-wide operating voltage.
• Compatible with full Colorlight control system lineup.
