Colorlight E Series LED Displays Controller E80 E120 E320 LED Receiving Card

$21.00

Model Number: E320

E320
E120
E80
Add to Wishlist

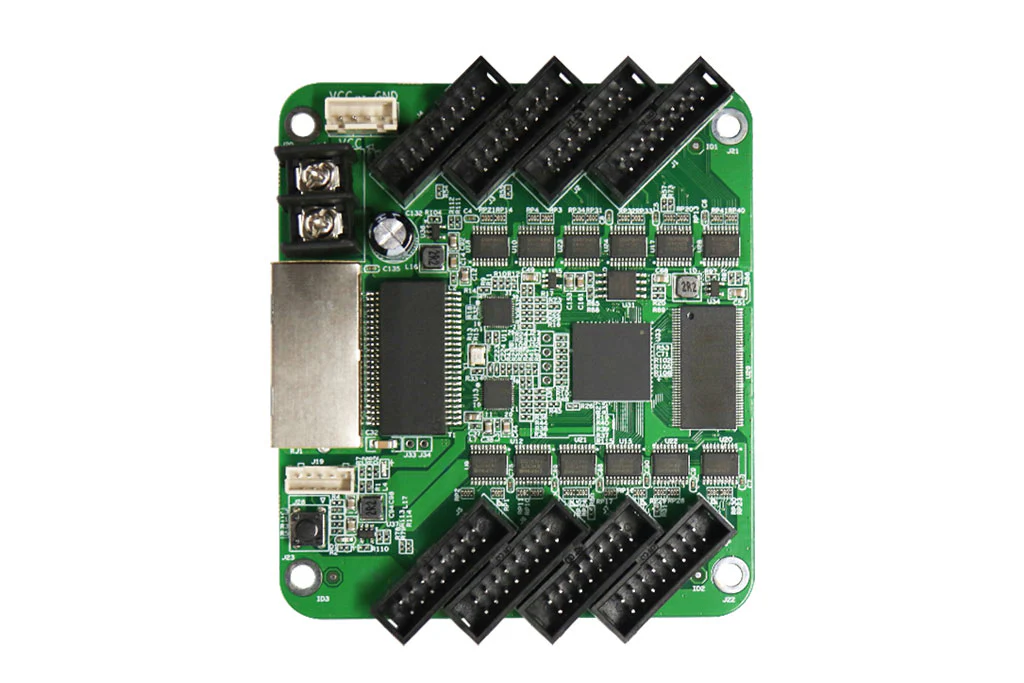

E80 LED Receiving Card

The E80 receiver card is a cost-effective product launched by Carlite to better help customers save costs, reduce failure points and lower failure rate. Based on the full use of the technical advantages of the universal receiver card, the HUB75 adapter board, which is the most common in the market, is integrated into the receiver card, which is more reliable, more trouble-free and more affordable on the premise of guaranteeing high quality display effect.

  • With the integration of HUB75, there is no need for an adapter board, which is more convenient and less costly.
  • Fewer pluggable connections, fewer points of failure and lower failure rates.
  • Support conventional chips to achieve high refresh, high grayscale and high brightness.
  • Better detailing to eliminate darkening of a row, reddish low gray, ghosting, etc. caused by the design of the unit panel.
  • Support high-precision integrated point-by-point correction of chromaticity and brightness.
  • Support for all conventional chips, PWM chips and lighting chips.
  • Support static screen, any scan type between 2 and 64 sweeps.
  • Support arbitrary sampling, support for data offset, can easily implement a variety of shaped screen, spherical screen, creative display.
  • Single card supports 16 groups of RGB signal output.
  • (a) Support for a large carrying area.
  • Support DC 3.3V~6V ultra-wide operating voltage.
  • Supports the full range of Carlite sending devices.

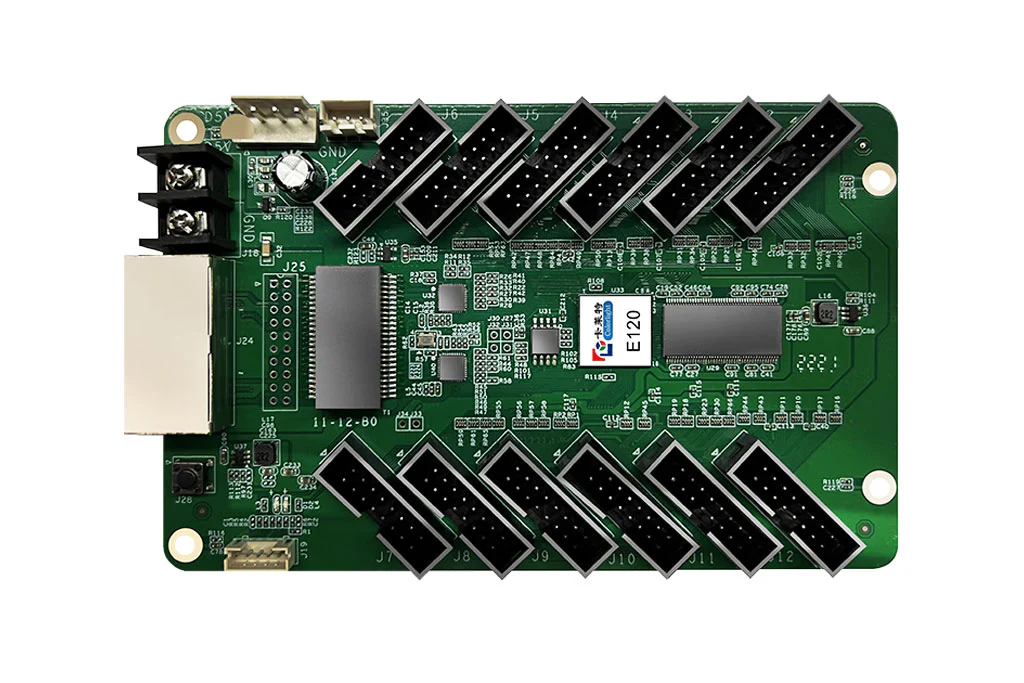

E120 LED Receiving Card

The E120 LED Receiving Card is developed on the basis of the E80 and retains its cost-effective, integrated HUB75 design. It increases the number of HUB75 ports to 12, allowing for greater load capacity while maintaining a compact layout. The E120 is ideal for complex or high-density display needs where reliable signal output and wide chip compatibility are essential.

  • Based on E80 design with increased HUB75 ports for more load capacity.
  • Supports 12 groups of RGB signal output.
  • High integration and reliable performance.
  • Supports static to 1/64 scan modes.
  • Supports all mainstream driver chips including PWM and lighting chips.
  • Supports point-by-point correction of brightness and chromaticity.
  • DC 3.3V~6V ultra-wide operating voltage supported.
  • Compatible with the full range of Carlite sending cards.

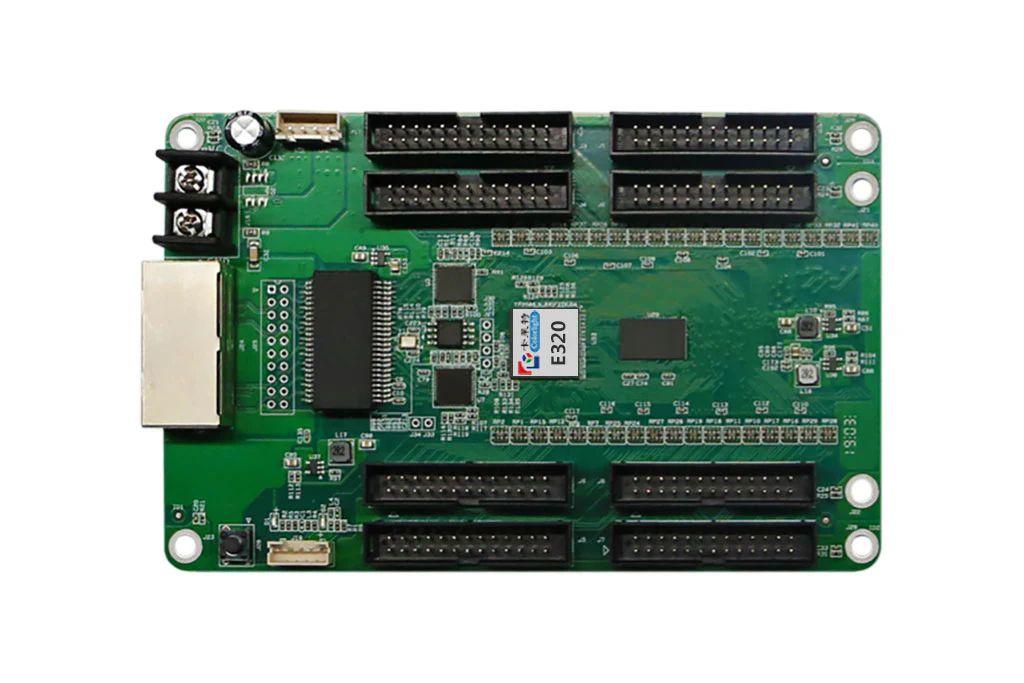

E320 LED Receiving Card

The E320 LED Receiving Card is developed on the basis of E80, with a larger load area and more interfaces, so as to better match different customer display needs. It is highly integrated, reliable and stable, and supports conventional driver chips, PWM driver chips and lighting driver chips. It can adapt to various display scenarios with high refresh, high grayscale and high brightness, and supports most applications on the market.

  • High integration, stable and reliable performance.
  • Adopts 24 interface design, supports 24 groups of RGB data.
  • Supports arbitrary scan mode from static to 1/64 scan.
  • Supports up to 512×512 pixels.
  • Supports high refresh rate, high grayscale and high brightness display effect.
  • Supports all mainstream driver chips including conventional chips, PWM chips and lighting chips.
  • Supports point-by-point correction of brightness and chromaticity.
  • Supports a wide working voltage range of DC 3.3V~6V.
  • Compatible with all Carlite sending cards and receiving cards.
